BM3 Orbit hydraulic motor for Eaton Hydraulic Wheel Motor for Mini Exccavator Gear Motor
Description
BM3 Orbit hydraulic motor for Eaton Hydraulic Wheel Motor for Mini Exccavator Gear Motor
Compact in design with spool valving and geroler
Imported high pressure capacity shaft seal

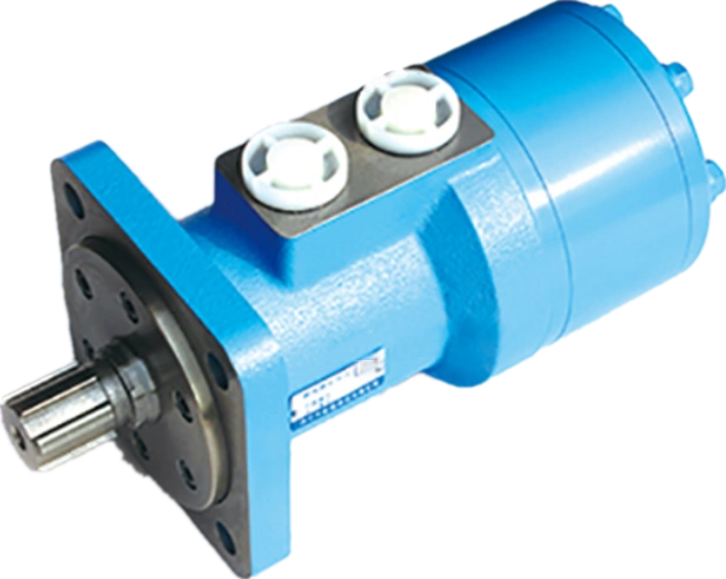

BM3 Orbit hydraulic motor
Type: BM3-100, BM3-160, BM3-200, BM3-250, BM3-320, BM3-400
Compact in design with spool valving and geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports and speed provides design flexibility
Direction of shaft rotation and speed can be controled easily and smoothly
Best combination of efficiency and economy in medium duty appliations
| Displacement(ml/r) | 100 | 160 | 200 | 250 | 315 | 400 | |
| Flow(LPM) | Cont. | 58 | 58 | 58 | 58 | 58 | 58 |
| Int. | 68 | 68 | 68 | 68 | 68 | 68 | |
| Speed(RPM) | Cont. | 551 | 344 | 276 | 220 | 175 | 140 |
| Int. | 646 | 404 | 323 | 258 | 205 | 162 | |
| Pressure(Mpa) | Cont. | 14 | 14 | 12.5 | 11 | 9 | 9 |
| Int. | 17 | 17 | 15 | 13 | 11 | 10 | |
| Torque(N*m) | Cont. | 178 | 285 | 318 | 350 | 360 | 418 |
| Int. | 216 | 346 | 382 | 413 | 400 | 464 | |
